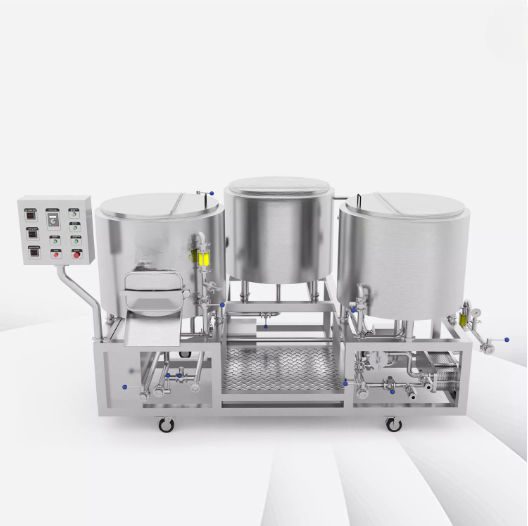

200L STAR Nano Brewhouse
Craftsmanship Meets Technology: Introducing the 200L STAR Nano 3-Vessel Brewhouse. Engineered for artisan mastery, this compact system empowers you with dedicated vessels for mashing, boiling, and fermenting, offering total control over your brewing process. Precision, performance, and perfection converge in this technical marvel, designed exclusively for the brewing enthusiast.
The 200L STAR brewhouse is specially customised for homebrew hobbies, entry-level Micro Breweries, Pilot Brewing System, or a full-scale Nano-Brewery production.
Product Overview
200L STAR Nano Brewery Equipment is specially customized for homebrew hobbies, entry-level Micro Breweries, Pilot Brewing System, or a full-scale Nano-Brewery production.
Smart
Mini scale industrial brewing equipment, with all the scaled down parts&fittings, you will full in love with this optimized Brew center.
Turnkey Solution
Installed& wiring ready on a fully welded frame platform, nothing can be easier for your pilot brewing jobs
Cost-effective
The 200L Brewhouse saves space and your installation time. It has four wheels and is very convenient to move. All Tanks are on one frame, which is very compact and practical.
Mash+Lauter Tank
- Effective volume=200L, max volume=250L
- Atmospheric top lid
- Tri-clamp Spary Ring Tube
- Wort backflow pipeline equip with Sight glass
- Removable false bottom
- Grain out door 7. Temperature Probe&PT-100
Kettle+Whirlpool Tank
- Effective volume=200L, max volume=250L
- Atmospheric pressure lid
- 6kw electric element
- Tangent whirlpool inlet
- Temperature Probe&PT-100
Hot Water Tank
- Effective volume=200L, max volume=280L
- Atmospheric manual open top lid
- 12kw electric element
- With 1T/H Hot water pump
- Temperature Probe&PT-100
with level mark inside of tank
PID Control Cabinet
- SUS 304 Material cabinet
- Temperature indicator & heating elements on/off control of mash/lauter tun, kettle/whirlpool tank, hot water tank
- Wort Pump VFD Speed control
- Hot water pump on/off control
- With high quality electric components, Schneider brand. CE, ISO Certificated
Knocking Out Fittings
- High precision hops filter, equipped in pipelinebefore PHE
- 3㎡ single stage plate heat exchanger
- Temperature Gauge after PHE
- Tap water outlet from the PHE to be able backflow into Hot water tank
- Oxygenation device before wort knocking out port
