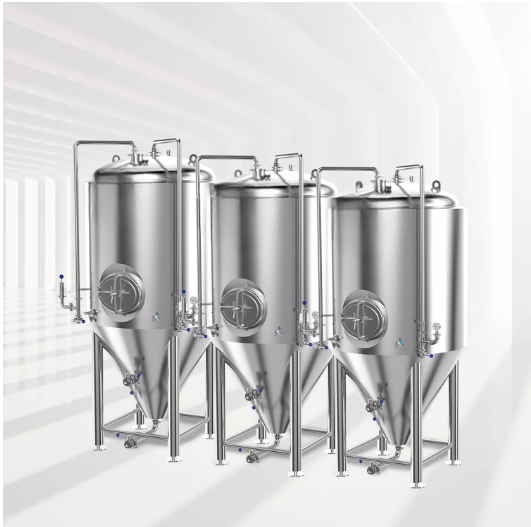

Vessel Configuration

• Effective volume = 500L, total volume = 625L --> extra 25% head space
• Net Dimension: 1060mm Dia x 2100mm H
• Oval head & 60°conical bottom
• Made from 304 Stainless steel, 100% TIG welded with 316 wire
• Inner layer=3mm, pickling and passivating treated
• Outer layer=2mm, Hairline polishing
• Cooling jacket: Dimpled plate on cone and side
• With glycol water inlet and glycol water outlet, tri-clamp type
• PU Insulation layer=80mm on side and cone bottom
• Design pressure 0.3MPa; Working pressure 0.15Mpa.
• 60°Conical Cone bottom
• 4 x heavy duty legs with leveling foot pads

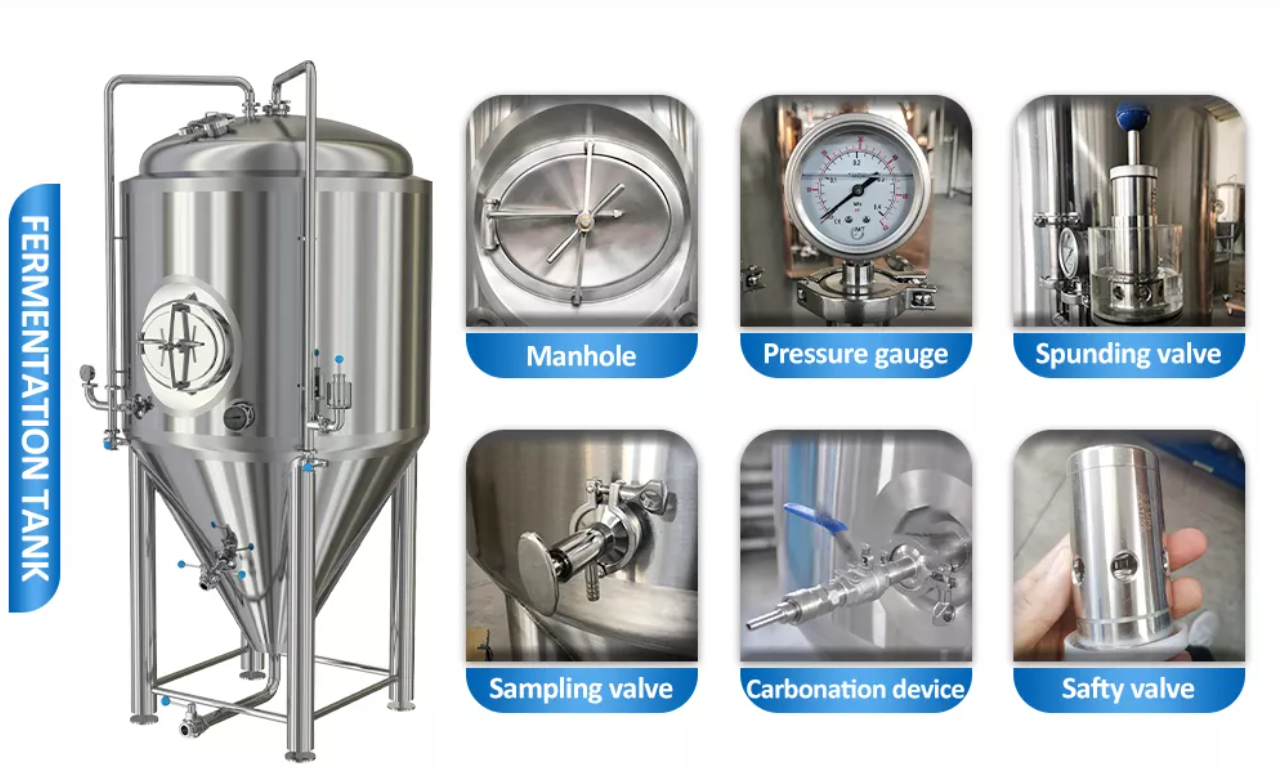

Features include:

• Top Manway or Side Manway --> based on your preference
• CIP arm with internal 360°spray ball
• Pressure relief valve on CIP arm
• Shockproof pressure gauge on top manway
• Temperature Gauge
• Sample port with high grade sample valve
• Carbonation Port with carbonation stone
• Product outlet on cone
• Bottom drain port
• PT-100 Temperature probe
• Complete fittings, valves

Optional Add-on include:

• Spunding Valve
• Dry hopping port on vessel
• Dry hopping device – sight glass type
• Ultra high quality sample tap (spiral-type)
