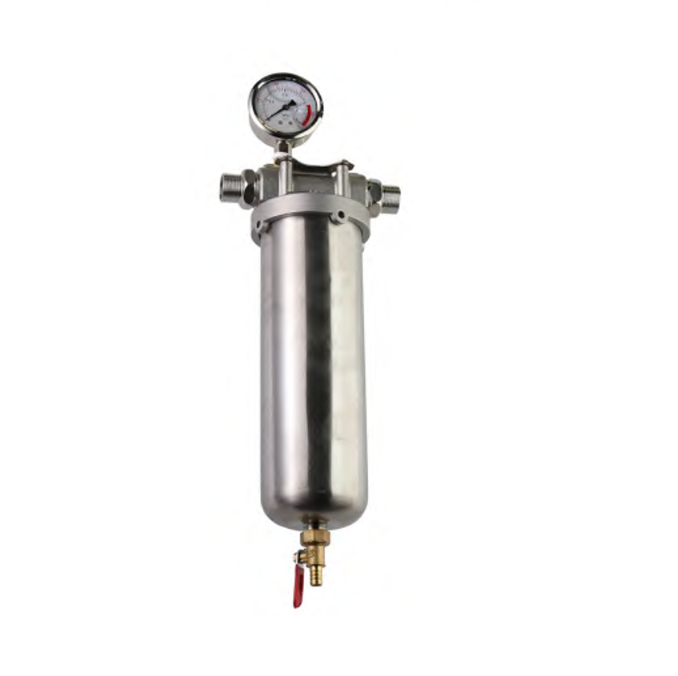

Stainless steel water filter with pressure gauge and multiple connection ports.

Diagram of a mechanical part with dimensions labelled.

Three components: a stainless steel tube, a cylindrical filter, and a mesh screen.

Two cylindrical water filter cartridges with end caps.

Pipe Mounted Single Filter Housing

Expertly Crafted Stainless Steel Single Filter Housing for Brewing Processes Our meticulously engineered stainless steel pipe-mounted single filter housing, available in either SS304 or SS316L, is the epitome of chemical compatibility, high temperature resistance, and durability. This exceptional housing is specifically designed to meet the stringent sanitary conditions and elevated temperatures required in brewing processes, making it the ideal choice for discerning professionals who find plastic filter housings inadequate. The water/wort filter cartridges, available in standard and big blue sizes, can be seamlessly installed within the housing, offering versatility in various lengths. These highly efficient and cost-effective housings present an economic and efficient solution for both brewing and industrial water filtration needs. Trust in our expertise and experience to provide you with the utmost in quality and performance.

REQUEST PRICING

Product Overview

The pipe mounted single filter housing datasheet features are shown below:

SS304 or SS316L material
Polished or sandblasted surface finish
5", 10", 20", 30", 40" cartridge length
2.5"OD or 4.5"OD cartridge size
1pc no. of cartridges
NPTF or BSPF connection
1/2", 3/4" or 1" inlet/outlet
Thread or clamp sealing type
EPDM, Silicon or Viton seal material
DOE or SOE cartridge end cap
Flat bottom or drain with plug bottom

Pleated filter cartridges to suit:

Polypropylene filter material
5", 9.75", 9.8", 10", 20", 30" or 40" cartridge length
2.75" (70mm) outside diameter
0.1μm, 0.22μm, 0.45μm, 0.65μm, 0.8μm, 1μm, 2μm, 3μm, 5μm, 10μm, 20μm, 30μm, 40μm, 50μm, 60μm
Polypropylene or stainless steel core
Polypropylene support / drainage
Silicone, EPDM, Viton, NBR or Teflon encapsulated Viton gasket / o-ring
Polypropylene end cap / cage
DOE, 222/Flat, 222/Fin, 226/Flat, 226/Fin, 215/Flat or 215/Fin end cap type

Pleated filter cartridges order information:

For example:

Pleated Filter Cartridges - 20" - 5μm - Double Open End (DOE) - Silicone Gasket

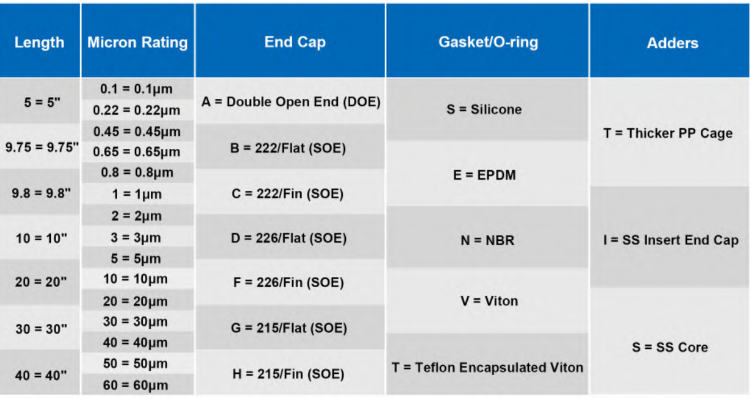

Table comparing various specifications, including length, ratings, cap sizes, and addresses.
